Underbody/Suspension > Retrofit/Upgrade spare tire carrier for 1972-93 D and W series trucks
Retrofit/Upgrade spare tire carrier for 1972-93 D and W series trucks


The product you selected is currently unavailable.

Price: $225.00
Availability: in stock
Prod. Code: JCSPU

To save time and money this item might be shipped direct from our supplier.



Update/replace your existing or missing 1972 to 93 spare tire carrier to a modern style winch and carrier for W&D series trucks.



NOTE - this item comes in two different styles the Utiline and Fleetside work slightly differently as the fleetside exists to the wheel well/slide and the utiline one exists to the rear of the truck.



Replace your old bulky and heavy carrier with this modern unit

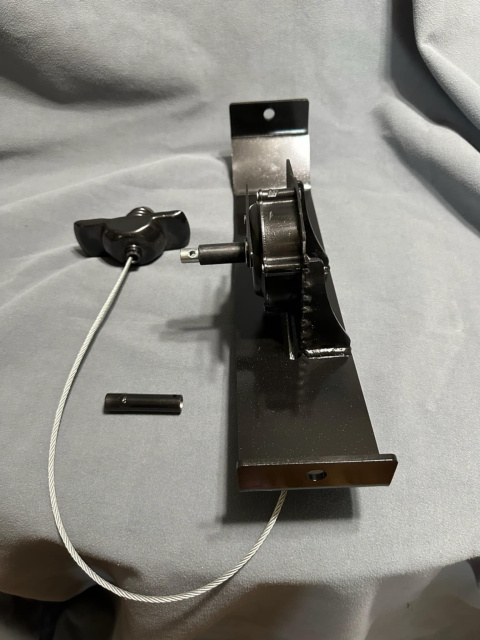

Unit easily bolts in place of the factory spare tire brace and positions your spare in the original factory location BUT with the added benefit of a new winch mechanism for raising and lowering your spare from the rear of the truck.



Winch is then operated from the rear of the truck with the included 3/8" coupler.



Only requires removal of two existing 1/2" bolts that are reused during installation.



Made in USA from laser cut 7 gauge material.



This unit is certified by NALRETO as a replacement part but requires an adapter ($15.00) to accommodate the larger center bore of the Lil Red wheels (or any 3/4 and 1 ton wheels)



Adapters are available here - https://www.dodgeconnection.com/catalog/item/2901766/10515685.htm

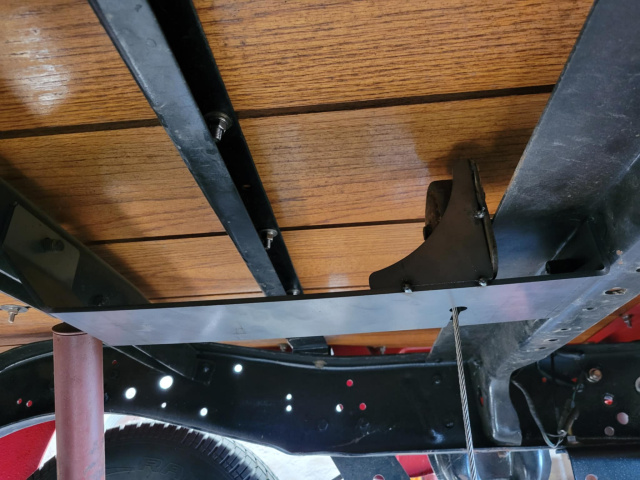

This is the Fleetside unit exiting to the side



Adapter for the larger bore wheels (only needed on the Utiline trucks)
